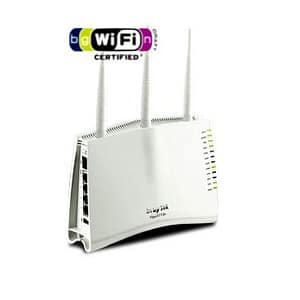

DrayTek Vigor 2110



Draytek Vigor 2110


The Vigor 2110 is a user-friendly broadband router with advanced bandwidth control mechanism and 2 VPN tunnels for secured remote access. In addition, the Vigor 2110 allows you to utilize multimedia applications without compromise of broadband bandwidth!

The Vigor 2110’s firewall provides the ideal balance of ease of use and security to help protect your network. The CSM (Content Security Management) can prevent family from the connection to Web sites that contain illegal or objectionable content_ The use of bandwidth consuming peer-to-peer (P2P) applications can be properly managed by embedded CSM.

The Vigor 2110 takes care of all your teleworking needs, with support of 2 simultaneous VPN connection. You can establish remote access or LAN-to-LAN session by utilizing IPSec/PPTP/L2TP/L2TP over IPSec with AES/DES/3DES for encryption and MD5/SHA-1 for authentication.

You can attach USB storage device to USB port of Vigor2110 to share files. Or, you can use USB printer by connecting it to USB port.

Hardware Interface

4 x 10/100M LAN Switch, RJ-45 1 x 10/100M WAN Port, RJ-45 1 x Factory Reset Button 1 x USB Host 2.0

WAN Protocol

DHCP Client
Static IP
L2TP *


Multi-NAT, DMZ Host, Port-Redirection and Open Port
Object-Based Firewall
MAC Address Filter
SPI (Stateful Packet Inspection)
DoS / DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control

Bandwidth Management

QoS : (Specific regional variants only)
Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Bandwidth / Session Limitation

Network Features

IGMPv2 proxy
DHCP client / relay / server
Dynamic DNS
Dynamic DNS
RADIUS client
SNTP client
Call scheduling
DNS cache / proxy
Routing protocol :
Static routing


Operating : 0°C ~ 45°C
Storage : -25°C ~ 70°C

Max. Power

10 Watt


DC 12V


4-port 10/100 M Ethernet Switch


Up to 2 VPN Tunnels
Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
Encryption : AES, MPPE and DES / 3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared Key and Digital Signature (X.509)
LAN-to-LAN, Teleworker-to-LAN
DHCP over IPSec
Dead Peer Detection (DPD)
VPN Pass-through

Content Security Management

IM / P2P Applications Blocking
URL Keyword Filter (Whitelist and Blacklist)
Web Content Filter


Printer Sharing
File System : * (throughput with above 2Mbps)
Support FAT32/FAT16 File System *
Support FTP Function for File Sharing *
Support samba for Windows File Sharing *

Network Management

Web-based User Interface (HTTP / HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet / SSH)
Administration Access Control
Configuration Backup / Restroe
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/WUI/TR-069
Logging via Syslog
SNMP Management MIB-II
Management Session Timeout
2 Level Management


10% ~ 90% ( non-condensing )


L216.4 * W147.8 * H53.5 (mm)
